Original Design and Manufacturing (ODM)
Our ODM expertise is focused on delivering proprietary products and solutions based on the market needs.
Our proven and tested solutions (based on our proprietary products) address the market needs in the industrial and consumer segments.
For ODM, we undertake complete product development, including design and manufacturing and where there is visible value addition from us in any stage of taking the product from concept to its final shape including shipping the products to the end customers. These solutions are based on our own range of proprietary RF products to cover various wireless communication requirements.

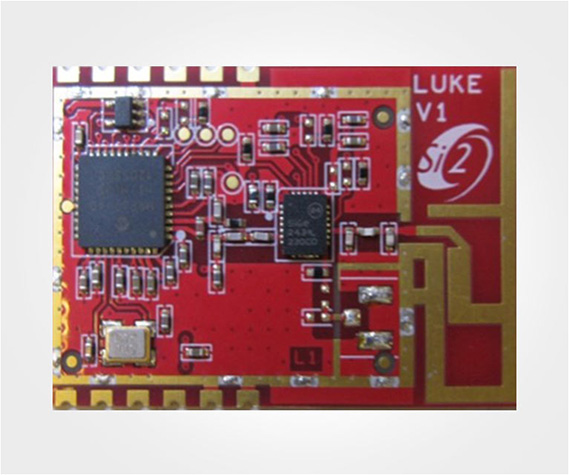

DDAMPL has developed the following Zigbee RF modules as per the IEEE 802.15.4-2003 standard Zigbee network protocol 2.4 GHZ ISM band transceiver module.
-
YODA Module
-
MACE
-
R2D2
MACE
A Programmable intelligent RF module combining an 868 MHz Ultra-Low Power Sub-GHz Transceiver and a 16-bit MCU.
Mace combines ultra-low-power, sub-GHz transceiver with a 16-bit MCU, integrated crystals, internal voltage regulator, matching circuitry, power management switch, EEPROM, and PCB antenna., Mace is ideal for designs requiring long battery life, flexible application integration, and a reliable, proven, best-in-class networking solution.
R2D2
2.4 GHz IEEE Std. 802.15.4 20dBm RF Transceiver
YODA
An Intelligent RF module combining a 2.4 GHz IEEE Std. 802.15.4 20dBm RF Transceiver and a 16-bit MCU.
YODA combines a 2.4GHz radio transceiver module with a 16-bit MCU. The radios provide industry standard RF performance with excellent sensitivity and transmit power for long range. Designed specifically using extreme low power microcontroller and a Zigbee protocol stack on IEEE 802.15.4 standards, Yoda is ideal for designs requiring long battery life, flexible application integration, and a reliable, proven, best-in-class networking solution.
Auto Pilot for UAV
Blackpoll is a fully functional UAV Autopilot with Dual core processing capability with processing speeds of up to 1 GHz.
In-built trajectory management gives Blackpoll the ability to seamlessly maintain height, altitude, direction, and speed. Real time health monitoring gives insight into onboard temperature and battery life from the ground. All of this is done whilst still achieving efficient power management.
The IMU includes a 3-axis accelerometer (± 8g), a 3-axis gyro (± 500 deg/sec) and a 3 axis magnetometer (± 1gauss) and ultrahigh sensitivity down to -163 dBm enabling indoor tracking. Weighing in at only 18g, and measuring 40mm by 70mm Blackpoll is both compact, and very light weight making it the perfect solution for low noise, high sensitivity GPS Data collection.
Single Board Computer
A powerful, feature-rich solution for the next generation of compute-intensive embedded applications. 6U CompactPCI CPU boards, enclosures, XMC, and PCI Mezzanine Cards (PMC).
- Quad- or dual-core processor with MPC8548E PowerQUICC III processor.
- FPGA ProASIC3
- 6U Compact PCI module
- Conduction or air cooling
- 1 GB of DDR2-PC2 5300 ECC SDRAM in two channels
- Up to 8 GB of NAND flash
- Three front panel Gigabit Ethernet ports
- Dual rear panel Gigabit Ethernet ports
- Two rear panel USB 2.0 high-speed ports
- One XMC/PMC interface
- MIL 1553 Interface
BLDC Motor Driver
The BLDC Driver Device is realized using System-in-Package (SiP) Technology.
The SiP is designed for pulse width modulation current control of 3phase brushless DC motors. The device is designed to dissipate the heat effectively with internal circuit protection for latched thermal shutdown. Internal circuit protection also includes dead time protection and under-voltage lockout. The device is available in SO 36 Footprint and can be configured for custom packages. This product is designed for use in a wide range of Industrial applications.
For More Information, Contact us.
